JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SC1625 Loading-cutting-unloading |
| Multi-functional Tool Head | Double tool fixing holes, quick insert tool fixing, easy to replace cutting tools, plug and play, set cutting, creasing, drawing, router and other functions in one |
| Tools | Electric oscillating tool, drag knife tool, plotting tools |
| Max. Cutting Speed | 1800mm/s (Varies with different cutting materials) |
| Max. Cutting Thickness | 50mm (Customizable according to different cutting materials) |
| Max loading height (include Pallet) | 750mm |
| Max single sheet thickness | 22mm |
| Max single sheet feed weight | 5kg |
| Max loading-unloading size(W*L) | 1600mm×2500mm |
| Min loading-unloading size(W*L) | 600mm×900mm |
| Material | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc |
| Material Fixation Mode | Vacuum suction |
| Transmission port | Ethernet port |
| Drive System | High-end digital servomotor, imported linear guide, synchronous belt, lead screw |
| Rated Power | 17kW |
| Rated Voltage | 380V±10% |
| Effective Cutting Size (WxL) | 1600mm×2500mm |
| Machine Size (WxLxH) | 2620mm×10660mm×1325mm (Loading area: 2060mm×3630mm×1250mm, Cutting area: 2504mm×3571mm×1325mm, Unloading: 2060mm×3630mm×1250mm) |
Note: * will be determined based on the specific materials in the actual application scenario.

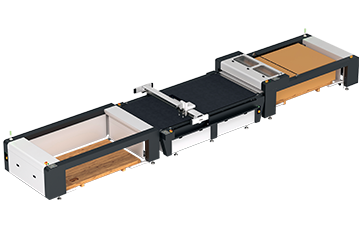

JWEI SC1625 Loading-Cutting-Unloading system, an advanced, fully automated cutting system engineered for high-volume flexible manufacturing. Combining a precision 1.6m* 2.5m conveyorized flatbed with heavy-duty material loading and unloading modules, this synchronized cutting system drives a seamless, hands-free production cycle directly from CAD data. Ideal for automotive interiors, footwear, and technical upholstery, it utilizes high-speed mechanical knives and intelligent nesting to cut rolls or sheets continuously, delivering immaculate, burn-free edge quality while eliminating manual handling bottlenecks.
Q: How does the JWEI SC1625 automated loading-cutting-unloading workflow optimize factory labor?
A: This comprehensive cutting system transforms the traditional labor-intensive cutting room into a streamlined, one-man or unmanned operation. By fully integrating automated roll/sheet loading, high-speed CNC knife cutting, and synchronized conveyor belt unloading, the entire line moves material forward automatically as soon as a batch is completed. This keeps the machine running continuously, drastically reducing manual labor overhead and operator idle time.
Q: What makes this cutting system more efficient than standalone digital cutting tables?
Q: What specific materials and industrial applications are ideal for this automated cutting system?
