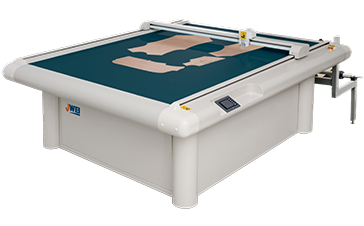

EDO-1862-A
99% customer praise rate
Watch Video
Pattern making in apparel factories,
footwear factories, and luggage factories
footwear factories, and luggage factories
As a classic series within the JWEI brand, the EDO pattern cutting machines are specifically designed for pattern making in the apparel, footwear, and luggage manufacturing industries. These machines precisely cut a wide range of materials, including kraft paper, white cardboard, gossamer paper, yellow chipboard, red rigid cardboard, PVC sheets, fiber mid-soles, and rubber sheets. Equipped with newly upgraded servo motor drives, a redesigned airflow system, and a high-power vacuum pump, the EDO series ensures fast cutting speeds and strong material hold-down. The oil-based pen provides clear and accurate line marking, while the drag knife and pen tool offer versatility in handling various materials—all while maintaining low consumable costs.
Trusted across the industry, the EDO Series stands out for its quality, efficiency, and cost-effectiveness, making it an essential production tool in professional pattern-making workflows.
Clear Oil-Based Marking Lines
Delivers sharp and precise markings; stable operation with low consumable cost.
Upgraded Servo Motor Drive
Newly upgraded servo motor enables faster cutting speeds for improved productivity.
Redesigned Airflow System
Innovative air duct paired with a high-power vacuum pump ensures stronger material hold.
Proven JWEI Classic Model
Trusted by users for its reliable quality and consistent performance.
Application Scenarios
The EDO series represents JWEI's classic model line, primarily used for pattern making in apparel factories, footwear factories, and luggage factories. It handles materials including kraft paper, white cardboard, gossamer paper, yellow chipboard, red rigid cardboard, PVC sheets, fiber mid-soles, and rubber sheets.
Kraft paper
Ivory board
Sulphite paper
Yellow cardboard
Red cardboard
Fiber plate

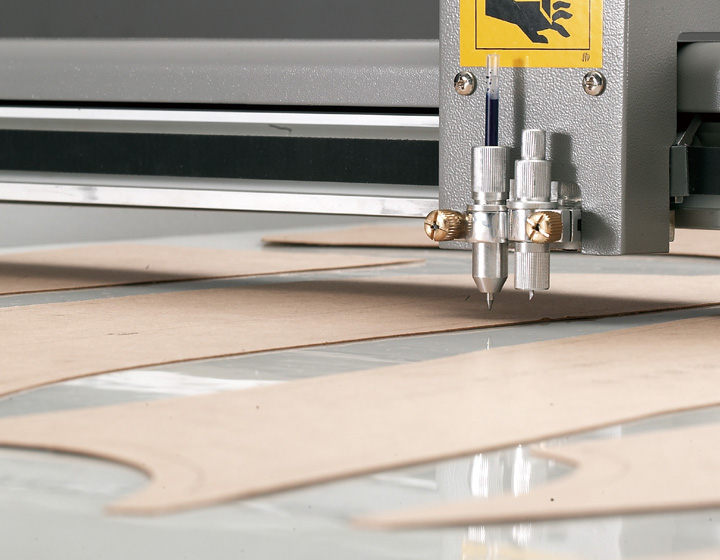

Optional Tools
Drag Knife Tool
Part description
Pen Tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | EDO-1873-R | EDO-1862-A | EDO-1653 |
| Working mode | Computer operation and cutting at the same time, fast data transmission, continuous use | ||
| Max. Cutting Speed | 1000mm/s | ||
| Max. Cutting Thickness | 2mm | ||
| Cut material | Kraft paper, Ivory board, sulphite paper, yellow cardboard, red cardboard, PVC board, fiber plate and rubber board etc. | ||
| Cutting mode | Multi-function knife holder,8 different settings with plotting, kiss-cut and thorough cutting. | ||
| Plotter pen/blade type | Ordinary signature pen, oil pen, ballpoint pen/special tungsten steel knife | ||
| Material fixation mode | Vacuum suction | ||
| Repeat precision | ±0.1mm | ||
| Network transmission distance | Ethernet port | ||
| Data transmission mode | HP-GL compatible mode | ||
| Interface | LCD screen with EN&CN languages | ||
| Rated voltage | 220V±10% 50Hz | ||
| Rated capacity | 1.76kVA | 2.64kVA | 1.76kVA |
| Fuse specific | 6A、30A | ||
| Feeding device | Standard Configuration | / | / |
| Machine Weight | 330kG | 220kG | 107kG |
| Effective cutting area | 1500mm×1200mm | 1500mm×900mm | 900mm×600mm |
| Machine size | 1850mm×1600mm×1000mm | 1850mm×1330mm×1000mm | 1270mm×1040mm×1000mm |
Note: * will be determined based on the specific materials in the actual application scenarioargin, reliable workflow for manufacturers.

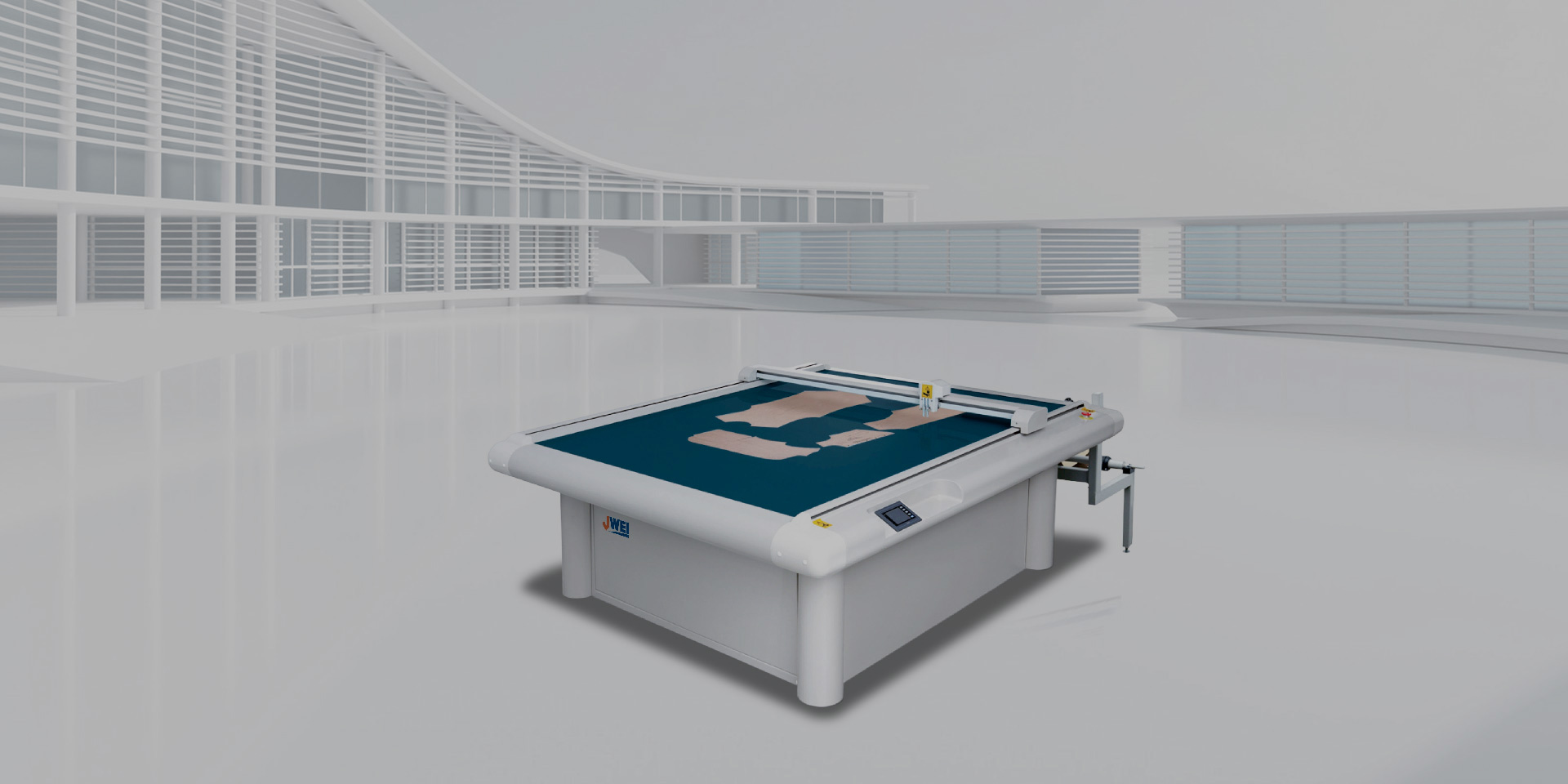

JWEI EDO-1862-A Precision Pattern Cutting Machine for Apparel, Footwear & Luggage
As a classic series within the JWEI brand, the EDO-1862-A pattern cutting machine is specifically designed for high-precision pattern making in the apparel, footwear, and luggage manufacturing industries. Engineered to streamline professional pattern-making workflows, this advanced digital cutting system processes a wide range of materials directly from CAD vectors. Equipped with newly upgraded servo motor drives, a redesigned airflow system, and a high-power vacuum pump, the EDO-1862-A ensures fast cutting speeds and strong material hold-down. It precisely handles various mediums including kraft paper, white cardboard, gossamer paper, yellow chipboard, red rigid cardboard, PVC sheets, fiber mid-soles, and rubber sheets, making it an essential, cost-effective production tool that delivers trusted quality and efficiency.
Frequently Asked Questions (FAQ)
Q: What materials can the EDO-1862-A pattern cutting machine process for industrial pattern making?
A: The EDO-1862-A is highly versatile, built to cut both flexible and rigid pattern materials precisely. It smoothly processes standard pattern-making mediums like kraft paper, white cardboard, gossamer paper, yellow chipboard, and red rigid cardboard. Furthermore, its robust design handles heavy-duty components such as PVC sheets, fiber mid-soles, and rubber sheets, allowing manufacturers in the apparel, footwear, and luggage sectors to handle multiple sample-making requirements on a single system.
Q: How does the EDO-1862-A ensure versatility and accuracy during the pattern-making process?
Q: What makes the EDO-1862-A a more cost-effective choice compared to other cutting methods?
