RC03II-1509

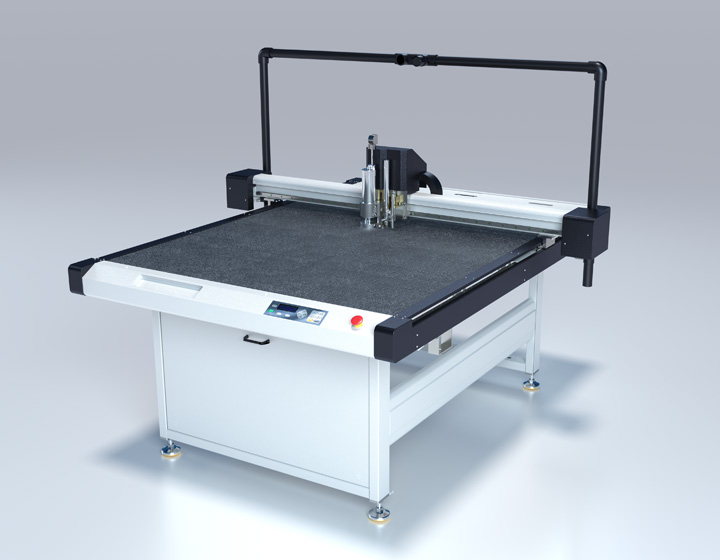

RC03II-1509 Cutting Machine | Digital Knife Cutting Machine
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
JWEI RC03II-1509 is an industrial-grade apparel template cutting machine engineered to automate the production of complex garment templates. By replacing expensive, specialized machines (like pocket welting or sleeve-setting machines), this versatile digital knife cutting machine allows manufacturers to produce custom sewing templates on-demand from CAD files—slashing production costs, reducing dependency on highly skilled labor, and accelerating time-to-market.
Equipped with a high-speed spindle motor and high-frequency cutting tools, this dual-purpose digital knife cutting machine processes rigid materials like PVC, acrylic, MDF, and heavy kraft paper with absolute repeatability.
Reduce costs
JWEI RC03II series replace completely the high-priced equipment such as bag opening machine, sleeve machine, pleating machine that are used for making collar, bag lid, pocket, stripe alignment etc.
·with the RC03II series Apparel Template Cutting Machine, one person does the work that used to do by 3 persons that of opening pockets, fixing zipper/collar, which lowers labor costs greatly.
Deliver consistent quality
RC03II series deliver higher quality of finished product to our customers in the details of the same height/size of pockets, the flattening zipper.
No need of skilled workers
Simple training about a week gets operators who never have experience in garment industry to go to work and make high quality clothing quickly.
Workflow runs through more smoothly
Automated equipment integrated into workflow accelerates digital transformation and makes overall processes more efficient.
Offer high-end tools
JWEI provides custom-tailor solution such as making special technics of sleeve pulled and other complicated tools if required.

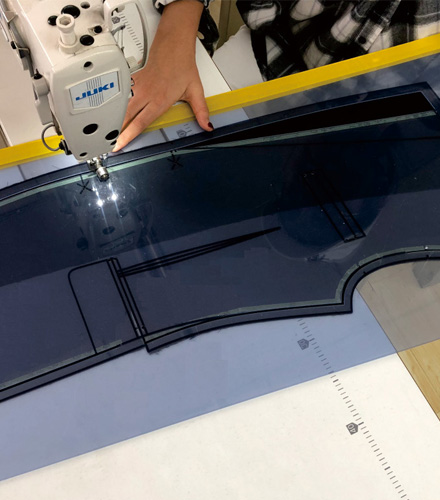

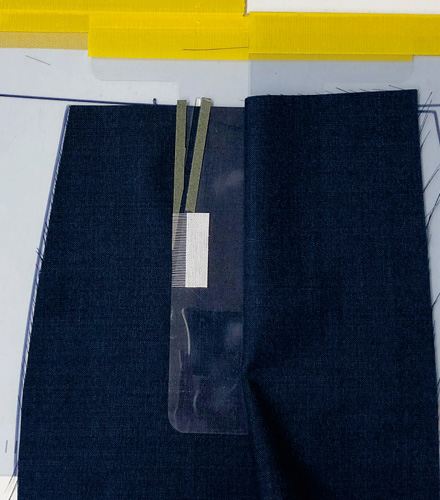

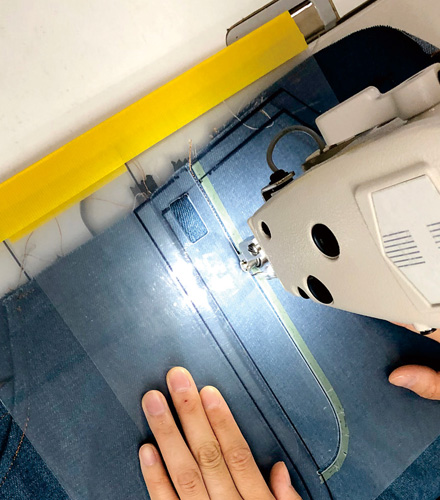

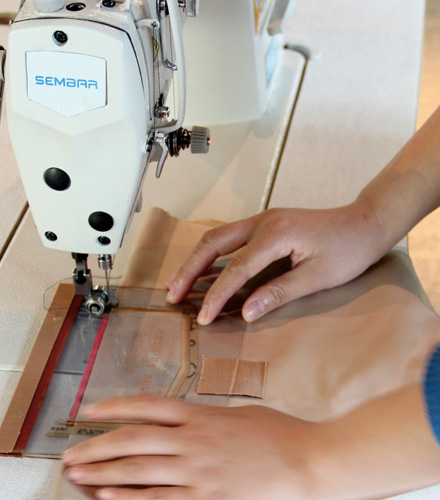

Application Scenarios
Optional Tools
Engraving knife tool
Part description
Drag knife tool
Part description
Milling Tool
Part description
Pen tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | RC03Ⅱ-1509 | RC03Ⅱ-1512 | RC03Ⅱ-1812 |
| RC03Ⅱ-1812 | Compatible with market general clothing CAD, computer operation and cutting at the same time, fast completion of data transmission | ||
| Cutting mode | Multi diameter router (replaceable),carving tool, plotter | ||
| Router diameter | 3.175mm、4.3mm、6mm、8mm | ||
| Maximum cutting speed | 800mm/s (depends on different kinds of materials) | ||
| Maximum cutting thickness | 10mm | ||
| Cutting materials | PVC board, acrylic board, MDF, plastic board hard materials, kraft paper, ivory cardboard | ||
| Repeat precision | ±0.1mm | ||
| Rated power | 4.2kW | 4.2kW | 5.2kW |
| Maximum spindle motor speed | 30000 (r/min) | ||
| Material fixation mode | Vacuum suction | ||
| Data transmission mode | HP-GL compatible mode | ||
| Operation panel | LCD display key screen with EN&CN languages | ||
| Drive system | Hybrid stepper motor, high precision linear guide, synchronous belt | ||
| Rated voltage | AC 380V±10%50Hz(case power supply AC 220V) | ||
| Total Weight | 250kg | 300kg | 330kg |
| Effective cutting area | 1500mm×900mm | 1500mm×1200mm | 1500mm×1200mm |
| Machine size | 2220mm×1620mm×1300mm | 2220mm×1920mm×1300mm | 2520mm×1920mm×1300mm |
Note: * will be determined based on the specific materials in the actual application scenario.

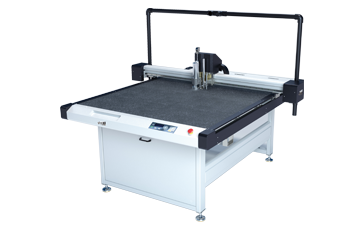

JWEI RC03II-1509 Precision Digital Knife Cutting Machine for Garment Patterns
JWEI RC03II-1509, a high-reliability digital knife cutting machine engineered specifically for precise garment pattern making. Eliminating the friction of slow manual tracing and costly steel-rule sample tooling, this advanced digital system processes delicate pattern papers, thick Kraft boards, and plastic grading templates directly from apparel CAD software. As a versatile digital knife cutting machine, the RC03II-1509 combines high-precision plotting pens and physical mechanical blades on a single flatbed, delivering flawless seam lines and notches that ensure your creative designs transition to bulk production with absolute geometric accuracy.
Frequently Asked Questions (FAQ)
Q: Why should an apparel factory choose a digital knife cutting machine over a traditional laser cutter for pattern making?
A: While lasers are fast, they present major drawbacks when cutting pattern materials like rigid plastic templates or thick Kraft board—they leave burnt, charred edges, generate toxic smoke, and can warp the material due to intense heat. This JWEI digital knife cutting machine uses high-speed, physical mechanical blades. You get a perfectly clean, cold, and smoke-free cut with 100% geometric accuracy. Plus, your operators can handle the cut pieces immediately without dealing with lingering chemical odors or burnt dust.
Q: What types of pattern substrates can this digital knife cutting machine handle during grading?
Q: Does this digital knife cutting machine integrate seamlessly with international garment CAD software?
