RC03III-1512

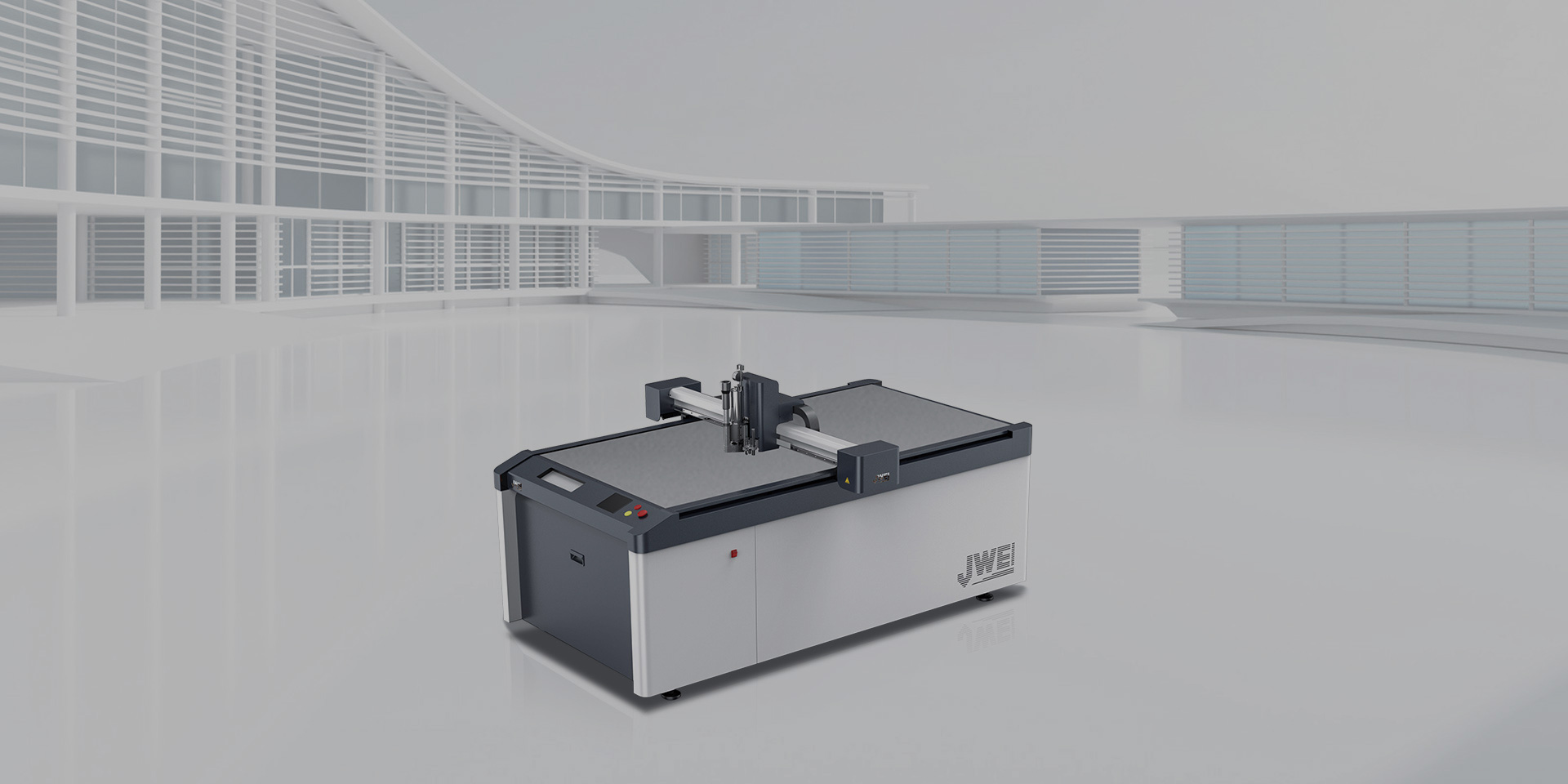

Multiple Router diameters Template Cutting Machine
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
There are so many ways to promote productivity and efficiency, and this is where JWEI RC03III series Garment Template Digital Cutter come from, the latest generation of Garment Template Digital Cutter that JWEI first to deliver in the world to offer customers the intelligent cutting solution for making pocket opened template, lower collar template and pocket lid template etc.
Speed increased 3 times
Production is made more efficient (doubles the efficiency) with independently developed controller upgraded and speed increased by 3 times than the previous generation.
Higher adsorption capacity
New duct structure allows higher adsorption capacity, which is improved by 15% than the previous generation.

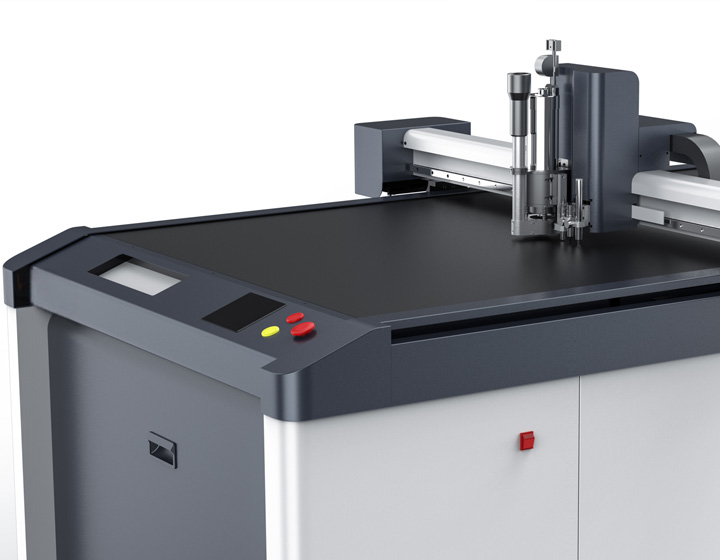

Smart touch screen
It captures clearly all the data including key performance and running metrics from the integrated J touch screen.
Excellent quality
Working more stable and longer with the use of carbon steel structure, JWEI offers the excellent quality of machines.
Industrial appearance
The new industrial design appearance that is perfect in every detail makes it possible for JWEI RC03III series to be an exhibit.
RC03III software 4.0
With RC03III templating software 4.0 which JWEI released first in the industry to streamlining the garment template cutting process
Application Scenarios
The cutting material including cutting, PVC sheet and cardboard, kraft paper,epoxy resin plate to make garment template and garment pattern.
Optional Tools
Milling Tool
Part description
Engraving knife tool
Part description
Drag knife tool
Part description
Pen tool
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | RC03Ⅲ-1512 | |
| Working mode | Compatible with market general clothing CAD, computer operation and cutting at the same time, fast completion of data transmission | |
| Cutting mode | Multi-diameter router(replaceable),special tungsten steel cutter, 8sets of different plotter pen, kiss-cut, thorough cutting settings. | |
| Router diameter | 3.175mm、4.3mm、optional for 6mm and 8mm | |
| Maximum cutting speed | 1000mm/s (depends on different kinds of materials) | |
| Maximum cutting thickness | 10mm | |
| Cutting materials | PVC board, acrylic board, MDF, plastic board hard materials, kraft paper, ivory cardboard, sulphite paper..... | |
| Repeat precision | ±0.05mm | |
| Rated power | 4.2kW | |
| Maximum spindle motor speed | 30000 (r/min) | |
| Material fixation mode | Vacuum suction | |
| Data transmission mode | PDF/XML/CUT/NT | |
| Operation panel | Jtouch smart full touch screen | |
| Drive system | Hybrid stepper motor, high precision linear guide, synchronous belt | |
| Rated voltage | AC 380V±10%50Hz(case power supply AC 220V) | |
| Total Weight | 350kg | |
| Effective cutting area | 1500mm×1200mm | |
| Machine size | 2165mm×1845mm×1300mm | |
Note: * will be determined based on the specific materials in the actual application scenario

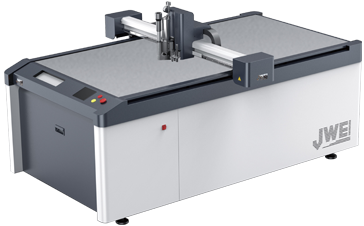

JWEI RC03III-1512 Digital Garment Template Cutting Machine for Apparel Production
JWEI RC03III-1512, a heavy-duty digital garment template cutting machine engineered for high-precision apparel manufacturing. Specially developed to handle rigid acrylic and PVC sheets alongside traditional grading papers, this advanced flatbed platform eliminates the bottlenecks of manual template routing. The RC03III-1512 digital garment template cutting machine combines a robust mechanical knife head with a high-torque spindle, allowing factories to cut intricate internal sewing slots and outer template perimeters directly from CAD files. Ideal for producing complex sewing stencils for down jackets, collars, and pockets, it ensures perfectly smooth, burr-free edges that prevent sewing thread snagging during production.
Frequently Asked Questions (FAQ)
Q: What is the maximum thickness of PVC or acrylic sewing templates that the RC03III-1512 can cut smoothly?
A: When it comes to industrial sewing templates, clean edge quality is everything. The RC03III-1512 digital garment template cutting machine is optimized to process rigid plastic sheets like PVC and acrylic up to 2mm to 3mm thick with absolute ease. Unlike laser cutters that leave sticky, melted edges on PVC or toxic fumes that ruin the shop floor, our heavy-duty physical knife blades and specialized routing tools deliver a perfectly clean, cold cut. The resulting template slots are flawless, ensuring your sewing machine guides glide through the tracks without a single millimeter of deviation.
Q: Can this digital garment template cutting machine process both plastic sewing templates and standard paper patterns?
Q: How does the RC03III-1512 maintain geometric accuracy across a larger 1512 flatbed working area?
