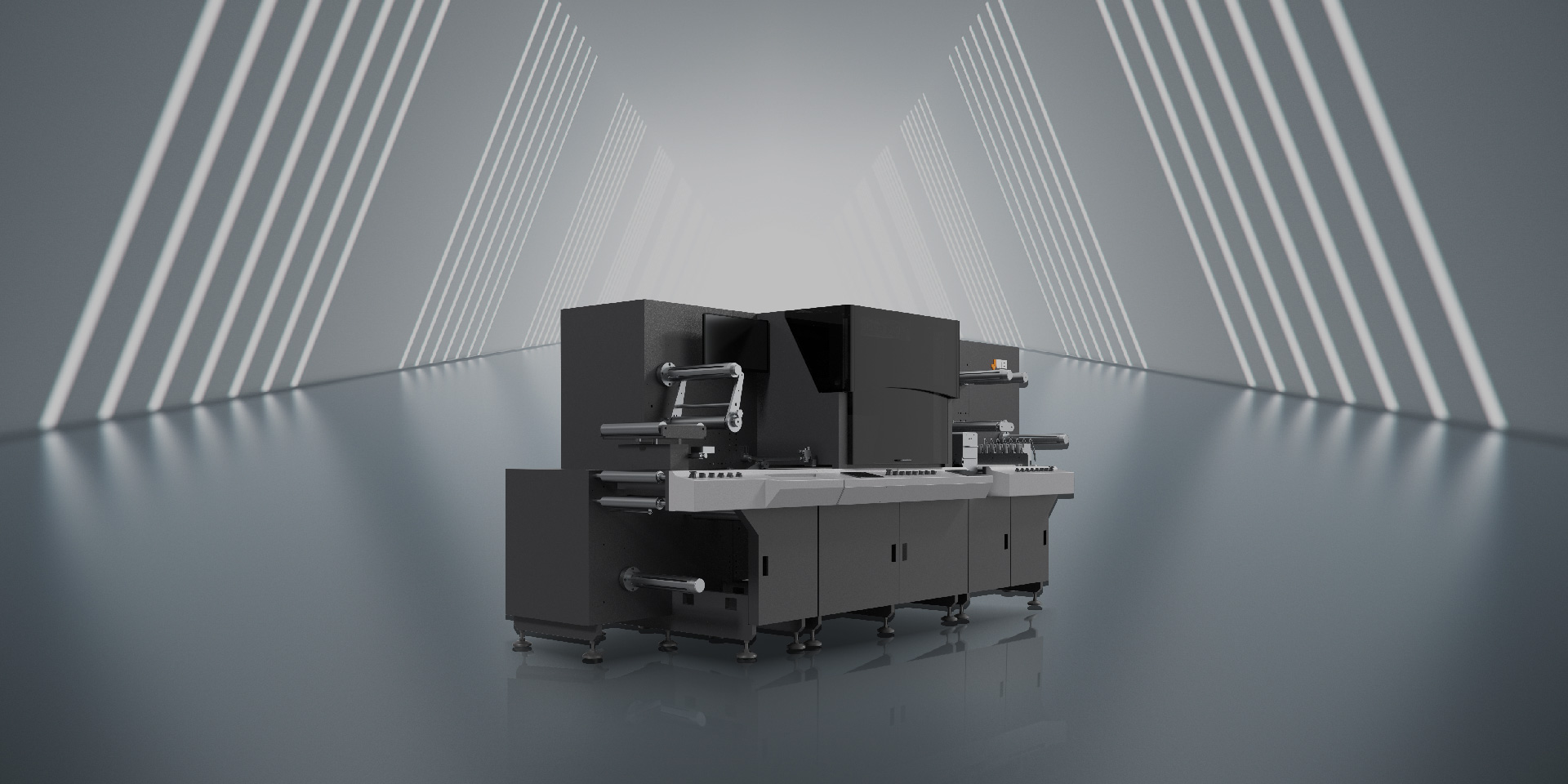

Ultra-high speed 80m/min Laser Digital Label Finisher
Watch Video
Laser Digital Label Cutter
for digital label production
for digital label production
The LP360 Digital Label Cutter is a laser die-cutting system designed exclusively for digital label production, eliminating physical dies to enable on-demand manufacturing of small batches and customized designs with zero waiting time. It achieves extreme speeds of ≤80 m/min with 0.1mm precision while integrating scoring, punching, engraving, and finishing techniques through its modular platform. Engineered for industrial reliability with a ≥20,000-hour laser and automated features including deviation correction and waste removal, it processes diverse materials—from paper labels and PET films to automotive decals and RFID tags—dramatically accelerating short-run production cycles without tooling costs.
Extreme Speed
Ultra-high-speed processing capacity ≤80 m/min, a new benchmark for production efficiency.
Unmatched Precision
Die-cutting accuracy of 0.1mm, ensuring flawless cut products.
Flexible and Versatile
Modular design supports various processing techniques: scoring, punching, engraving,
continuous numbering, flexo printing, varnishing, hot stamping, etc.
Stable and Reliable
Laser with ultra-long lifespan, ≥20,000 hours of worry-free operation.
Technologically Advanced
Combining strengths to highlight advantages, with an imported galvanometer, a threedimensional dynamic system and our proprietary laser die-cutting control system.
Easy to Operate
Features like automatic deviation correction, automatic rewinding/cutting/slitting, and waste
collection with minimal adhesive residue.
Application Scenarios
JWEI LP360 Laser Digital Label Finisher
Paper-based adhesive labels, PET, industrial tapes, film materials, car decals, self-adhesive
labels, wine labels, custom-shaped labels, RFID labels, paper, tape, protective films, and electronic product labels.
Anti-counterfeit label
PET label
PP label
Removable adhesive label
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | LP360 |
| Maximum speed | ≤ 80 m/min * |
| Die cutting accuracy | ±0.1mm * |
| max cutting width | 350mm |
| Die cutting length | no limited |
| Feed width | 350mm |
| Unwinding diameter | 500mm |
| Winding diameter | 500mm |
| Visual system | 4KCCD industrial camera, QR code/barcode automatic switching graphics |
| Deviation correction system | Automatic edge correction. |
| Working power supply | Three-phase five-wire system 380V 50Hz |
| Air pressure | >0.4mpa water-and oil-free |
| Water cooler size | 900mm×900mm×1100mm |
| Machine power | 15kW |
| Laser power | 300W metal RF laser |
| Water cooler | 3kW |
| Cutting platform | Negative pressure aluminium alloy table. |
| Supporting document | AL, PLT, DXF, DWG, etc |
| Machine weigth | 3500kG |
| Machine Size (WxLxH) | 1950mm×3800mm×1850mm |
Note: * will be determined based on the specific materials in the actual application scenario.

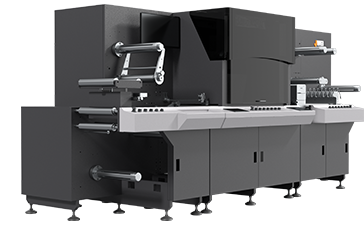

JWEI LP360 Precision Digital Label Finisher with Roll-to-Roll Laser Die Cutting
JWEI LP360 Laser Digital Label Finisher, the ultimate die-less solution for high-speed sticker and label fabrication. Perfect for print shops and label manufacturers, the LP360 utilizes advanced laser cutting technology to execute complex custom contours with zero tooling costs. Equipped with a high-precision roll-to-roll system and real-time tracking, it delivers clean, flawless edges on a wide variety of substrates without thermal deformation.
Frequently Asked Questions (FAQ)
Q: What is the real setup time when switching between different sticker shapes on the LP360 digital label finisher?
A: In a traditional print shop running mechanical rotary die cutters, switching from a round sticker to a custom star-shape means stopping the line, waiting for a new magnetic cylinder or flexible die, and wasting meters of material just to get the registration right. With the LP360 digital label finisher, the setup time is exactly zero seconds. Because it is a purely digital laser system, you simply upload the new vector file, and the dual high-speed galvo heads adapt instantly. You can jump from an order of 50 custom bottle labels to 5,000 industrial warning stickers without turning a single wrench.
Q: Does the heat from the laser beam burn the edges or melt the adhesive on PP/PET plastic label materials?
Q: Can this digital label finisher actually keep up with the speed of my industrial digital label printer?
