MI60
High-Volume Automated CNC Fabric Cutting speed 100m/min
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
JWEI has launched the groundbreaking MI Series Intelligent Multi-layer Cutting System, redefines cutting efficiency with its True On-the-Fly Cutting technology. This innovation achieves a high-speed cutting performance of up to 100 m/min. By integrating AI vision positioning and zero-gap cutting, further improve material utilization by an additional 5%. Equipped with a top tier, full time dynamic frequency-converting vacuum system—standard as top configuration— the MI series ensures strict interlayer tolerance control within ±1 mm across materials from knits to composite PVC. Combined with intelligent modules like EasyViewing and EasySetting, the system significantly reduces operational complexity. The MI Series is widely applicable across industries including apparel, automotive interiors, and medical protective materials, setting a new benchmark for high-efficiency and precision cutting.
100m/min
Efficient production capacity, with a maximum running speed of 100m/min.
≤1mm
Cut pieces and notches remain consistent on both upper and lower parts, with a cutting error of ≤1 mm.
5%
Zero buffer saves up to 5% fabric
AI+MES
AI-Driven MES for smarter decision-making.
200mbar
The vacuum retention is more than twice the industry standard.
0.01mm
Equipped with German Beckhoff AX5206 servo system, delivering control accuracy up to 0.01 mm.
40%
Proprietary algorithm enables “cutting while moving,” boosting average cutting efficiency by 40%
Application Scenarios
JWEI Multi-layer Cutting System is widely used in industries such as apparel, bags, and leather goods. They are capable of cutting a variety of flexible materials including knits, denim, woven fabrics, automotive composite PVC, synthetic leather, and polyester.
Denim fabric
Cotton fabric
Knitted fabrics
Stretch-fabric
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | MI60 |
| Cutting height | 60mm |
| Maximum running speed | 100m/min |
| Maximum acceleration | 9.8m/s2 |
| Maximum blade vibration frequency | 6000rpm |
| Effective cutting window length | 1.8m (equipped with cutting-while-moving function for continuous cutting) |
| Effective cutting width | 2.0m |
| Vacuum adsorption option | Dynamic control,45kW |
| Power supply | 380V three-phase five-wire,50/60Hz |
| Workbench height | 85cm |
| Noise | <75dB |
| Vacuum energy consumption | Average energy consumption <15kW |
| Cutting materials | Knitted fabrics,denim,woven fabrics,automotive composite PVC,artificial leather,polyester and other flexible materials |
| Overall weight | About 4 tons |
| Machine Size (WxLxH) | 2980mm×4570mmx2200mm |
Note: The above are the design parameters of our company; specific data will vary depending on materials and applications.

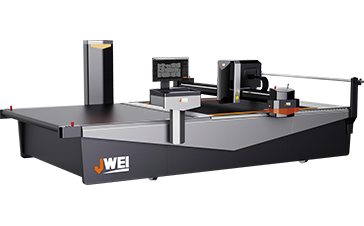

MI60 High-ply cutting Digital Machine for High-Volume Production
JWEI MI60, a heavy-duty digital die cutting machine engineered for high-volume, high-ply cutting workflows. By replacing rigid physical dies with advanced, computer-controlled knife technology, this high-performance platform allows manufacturers to transition seamlessly from digital CAD files to finished products with zero setup time. The MI60 digital die cutting machine features an ultra-powerful intelligent vacuum zoning system that tightly compresses towering stacks of textiles, composites, or flexible materials, ensuring absolute stability for advanced high-ply cutting operations. Driven by precision motion controls and industrial-grade blades, it delivers flawless vertical accuracy across dozens of compressed layers simultaneously, making large-scale production runs highly efficient and profitable.
Frequently Asked Questions (FAQ)
Q1: What exactly is a High-ply cutting system, and how does the JWEI MI60 maximize workshop throughput?
A: Traditional digital cutters handle materials sheet by sheet or in very low stacks, which bottlenecks mass production. A High-ply cutting system is engineered to cut compressed, towering stacks of fabrics all at once. The JWEI MI60 automates this entire workflow—from receiving nested files to executing continuous, high-volume cuts through dense material layers—dramatically multiplying your daily output compared to manual cutting tables.
Q2: How does the MI60 maintain perfect precision from the top layer to the bottom layer during High-ply cutting?
Q3: Can the MI60 prevent fabric melting or fusing when executing heavy-duty High-ply cutting?
Q4: What industries benefit the most from the JWEI MI60 High-ply cutting setup?
