MI90
Efficient production capacity, with a maximum running speed of 100m/min.
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
JWEI MI90 high-ply digital cutting system delivers an exceptional cutting depth of up to 90 mm at a maximum operational velocity of 100 m/min. Engineered with a premium Beckhoff AX5206 servo system to achieve a micro-level motion control accuracy of 0.01 mm, this industrial-grade platform integrates advanced zero-buffer cutting technology that improves fabric yields by up to 5%. Simultaneously, JWEI's proprietary algorithmic calibration ensures perfect alignment and identical geometric consistency between the top and bottom plies while enabling a true, continuous cutting-while-feeding workflow. With an average production efficiency boost of 40% compared to conventional machinery, the MI90 is widely deployed across soft-goods manufacturing sectors—including apparel, automotive interiors, home furnishings, footwear, and luggage—flawlessly showcasing JWEI's ability to balance high precision, high throughput, and low material waste.
100m/min
Efficient production capacity, with a maximum running speed of 100m/min.
≤1mm
Cut pieces and notches remain consistent on both upper and lower parts, with a cutting error of ≤1 mm.
5%
Zero buffer saves up to 5% fabric
AI+MES
AI-Driven MES for smarter decision-making.
200mbar
The vacuum retention is more than twice the industry standard.
0.01mm
Equipped with German Beckhoff AX5206 servo system, delivering control accuracy up to 0.01 mm.
40%
Proprietary algorithm enables “cutting while moving,” boosting average cutting efficiency by 40%
200%
Double efficiency with arc-shaped cutting edges. Upper and lower blades remain consistent, while dual-roller sharpening keeps them sharp at all times.
Application Scenarios
JWEI MI90 high-ply digital cutting system is widely applicable for processing a diverse range of textiles, including functional hardshell jacket fabrics, fleece, terry cloth, denim, automotive composite PVC, faux leather, and polyester. It effortlessly accommodates the versatile cutting demands of manufacturing sectors such as apparel, automotive interiors, home furnishings, footwear, and luggage. Whether processing ultra-thin materials or thick technical composite substrates, the MI90 consistently delivers stable, high-efficiency cutting results, providing a flexible and dependable finishing solution for clients across multiple industrial fields.

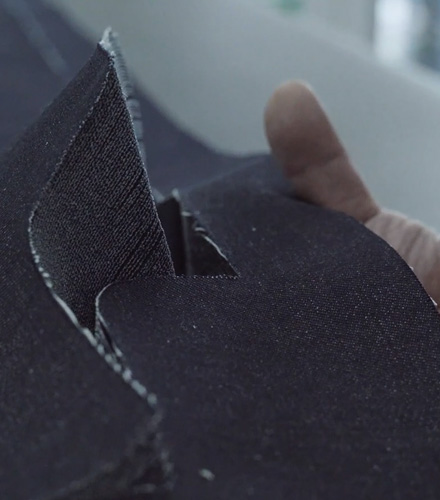

Denim fabric
Cotton fabric
Knitted fabrics
Stretch-fabric
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | MI90 | |
| Cutting height | 90mm | |
| Maximum running speed | 100m/min | |
| Maximum acceleration | 9.8m/s2 | |
| Maximum blade vibration frequency | 6000rpm | |
| Effective cutting window length | 1.8m (equipped with cutting-while-moving function for continuous cutting) | |
| Effective cutting width | 2.0m | 2.2m |
| Vacuum adsorption option | Dynamic control,45kW | |
| Power supply | 380V three-phase five-wire,50/60Hz | |
| Workbench height | 85cm | |
| Noise | <75dB | |
| Vacuum energy consumption | Average energy consumption <15kW | |
| Cutting materials | Knitted fabrics,denim,woven fabrics,automotive composite PVC,artificial leather,polyester and other flexible materials | |
| Overall weight | About 4 tons | |
| Machine Size (WxLxH) | 2980mm×4570mmx2200mm | 3180mm×4570mm×2200mm |
Note: The above are the design parameters of our company; specific data will vary depending on materials and applications.

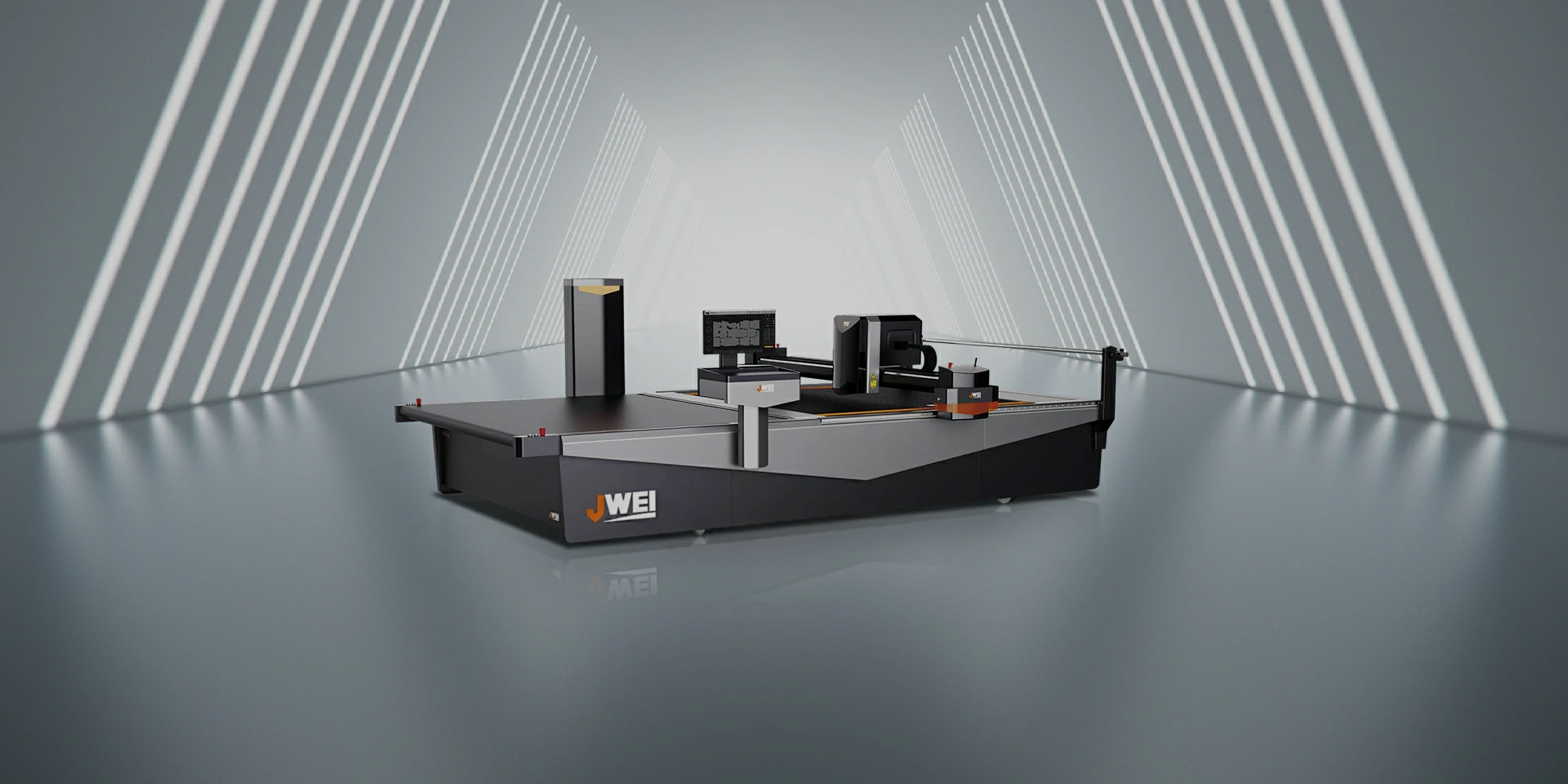

MI90 High-ply cutting Digital Machine for High-Volume Production

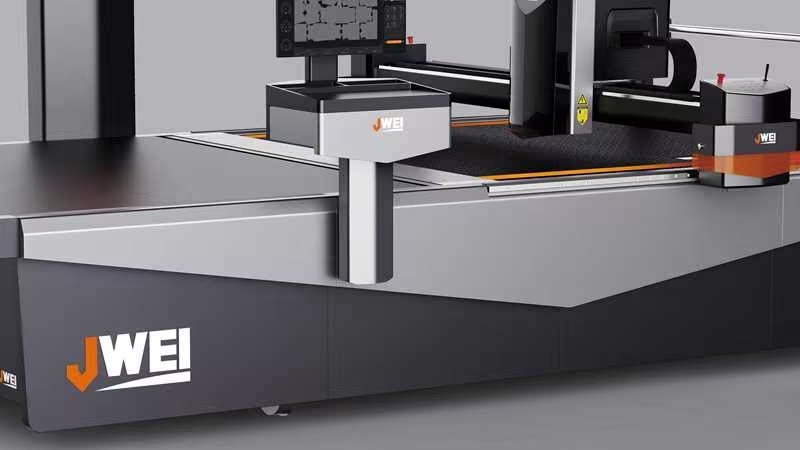

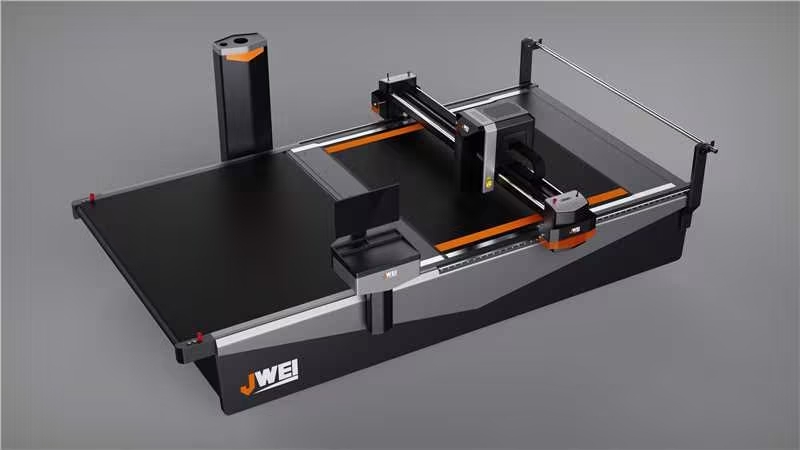

The JWEI MI90 is a highly efficient, intelligent high-ply cutting system specifically engineered for the textile, garment, and automotive interior industries. Designed to handle demanding mass production, this automatic multi-layer cutter delivers unparalleled precision and speed, making high-ply fabric cutting smoother and more cost-effective than ever before.
Frequently Asked Questions (FAQ)
Q1: What materials can the JWEI MI90 high-ply cutting system handle?
A: The JWEI MI90 is engineered to handle a wide range of multi-layer materials. It delivers exceptional precision in high-ply cutting for woven and non-woven fabrics, denim, canvas, synthetic textiles, garment materials, and technical textiles used in the automotive interior and upholstery industries.
Q2: How many layers of fabric can the MI90 multi-layer cutter cut at once?
Q3: How does JWEI ensure accuracy from the top layer to the bottom layer during high-ply cutting?
