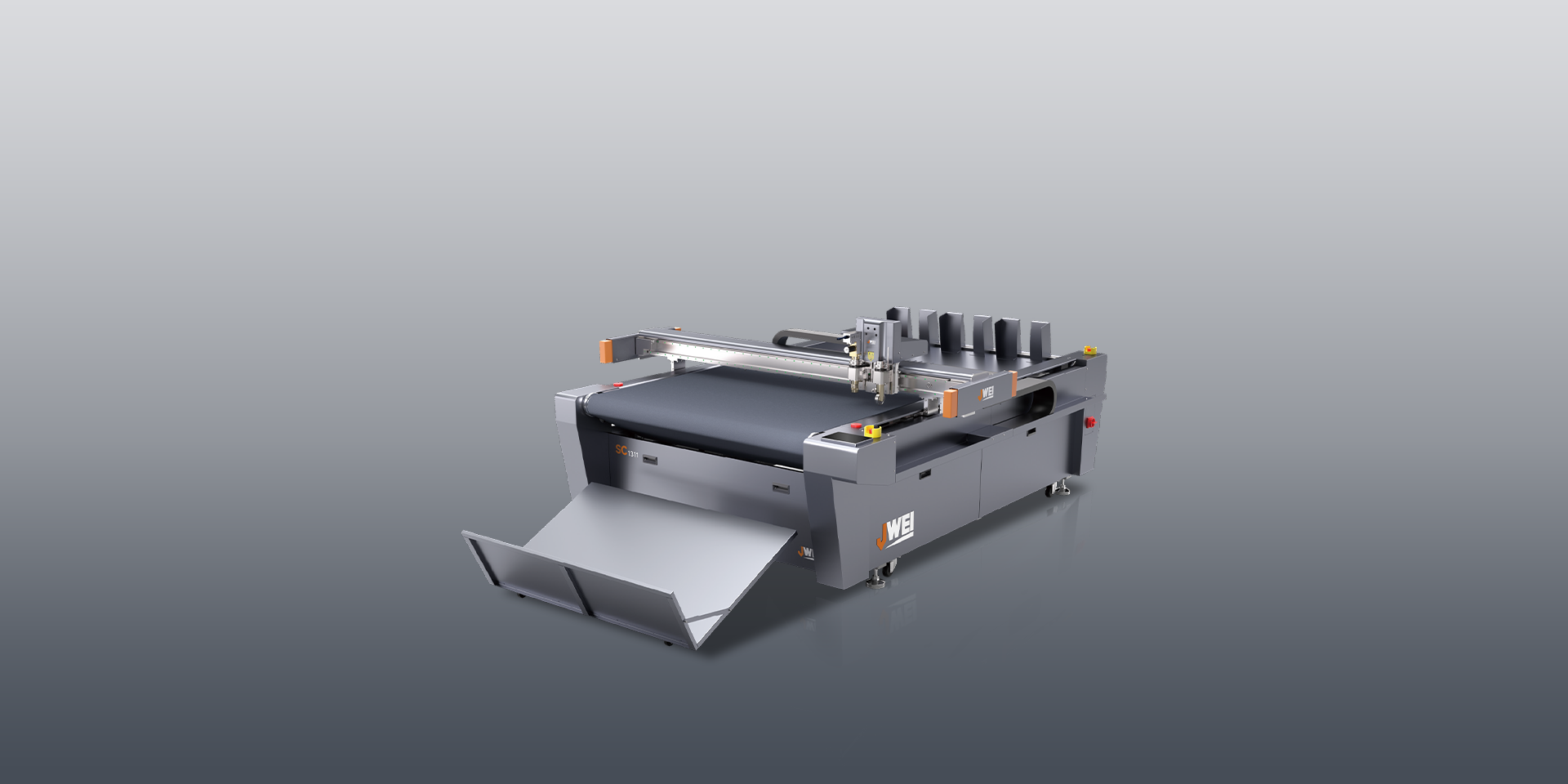

SC1311 Feeding & Cutting & Collecting
Intelligent integrated automated digital cutting system

Watch Video

JWEI Intelligent Digital Cutters & CNC Cutting Solutions
SC1311-RM Sampling & Small batch intelligent cutting solution, compatible with a wide range of materials.
Pluggable & multi-head
Various of tools and easily tool changing.
Self developed control system
Using JWEI self developed control system, cutting speed is max 1800mm/s.
Auto feeding&cutting&collecting
Sampling, small batch production, more applications.
Application Scenarios

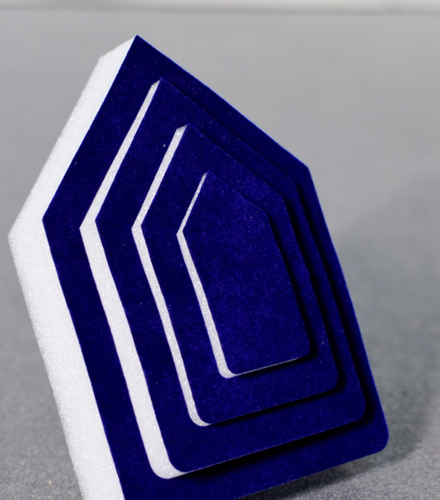

30mm Foam composite fabric

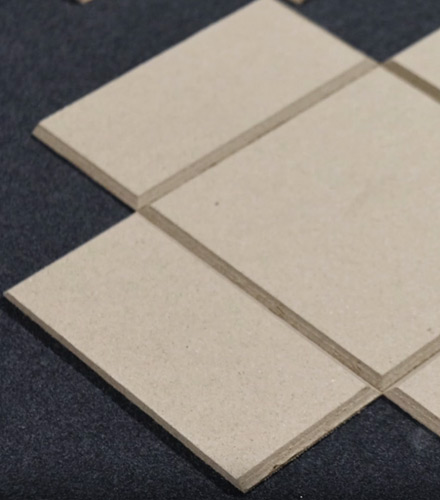

45° slotting of the gray board

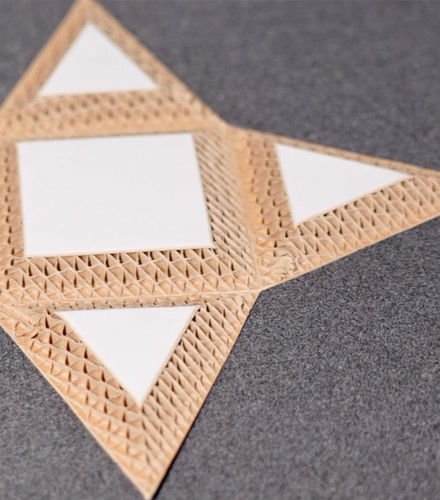

45° slotting of the honeycome board

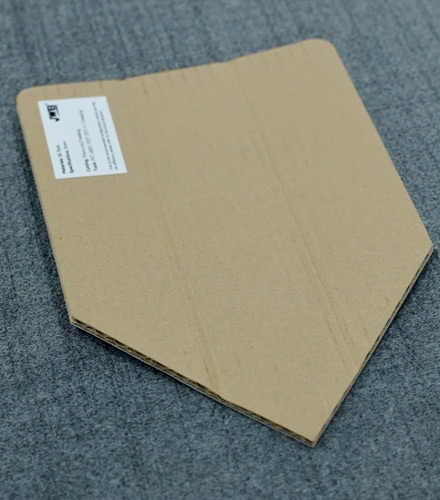

Corrugated board
Optional Tools

Designed for cardboard grooving, with an adaptive surface and anti-penetration design features, allowing for high-precision grooving of cardboard.

V-CUT Tool For Photo Frame

Part description

Capable of grooving various materials such as honeycomb board and KT board at angles from 0° to 120.

V-CUT Tool For Multi-angle

Part description

Equipped with a high-frequency Maxon motor, reaching speeds up to 18,000 RPM, and featuring specially made tungsten steel hardened blades, it easily handles cutting various harder and thicker materials (such as corrugated cardboard, honeycomb cardboard, KT board, and foam board) with fast speed and smooth, neat edges.

Electric Oscillating Tool

Part description

Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.

Universal Cutting Tool

Part description

Specifically designed for greyboard grooving, with adjustable angles from 0° to 135°.

V-CUT Tool For Grey Board

Part description

Electric Foam Cutting Tool with a 2mm vibration stroke, specifically for cutting foam materials up to 50mm thick such as EPP, pearl cotton, EVA foam, and sponge.

V-CUT Tool For Photo Frame

Part description

Technical Parameters

JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.

Model SC1311 Feeding & Cutting & Collecting

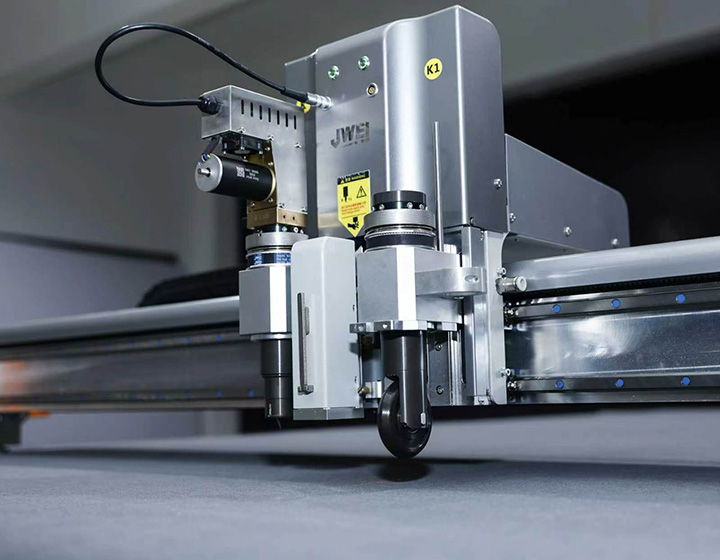

Multi-functional Tool Head Easy to change different tool heads. Engraving and router. Oscillating thorough cutting/Kiss cutting/Creasing/Plotting/Laser positioning and precision camera registration.
Tools Various kinds of cutting blades, different size of creasing wheels and plotting pen etc.
Safety Device Infrared sensor,responsive,safe and reliable.
Max. Cutting Speed 1800mm/s *
Max. Cutting Thickness 30mm *
Max. Loading Height 180mm
Max. Feeding Thickness 30mm
Repeat Precision ±0.05mm
Cutting Materials Cardboard, corrugated, greyboard, PVC/PET, EPE/EVA, hollow sheet, honeycomb panel, flexo, etc.
Material Fixation Mode Vacuum absorption
Servo Resolution ±0.01mm
Transmission Mode Ethernet port
Drive System High-end digital servomotor, imported linear guide, synchronous belt, lead screw
Rated Power 9.7kVA
Rated Voltage 380V±10%
Machine Weight 700kG
Effective Cutting Size 1300mm×1100mm
Machine Size 2400mm×3857mm×1345mm

Note: * will be determined based on the specific materials in the actual application scenario

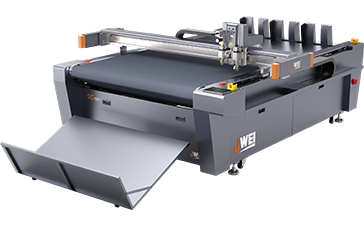

JWEI SC1311 Automated Digital Cutting System for Volume Production

JWEI SC1311, an advanced automated digital cutting system engineered for high-volume flexible manufacturing. Integrating a heavy-duty 1.6m*2.5m synchronized conveyor belt with automated material loading and unloading modules, this comprehensive production architecture drives a seamless, hands-free manufacturing cycle directly from CAD data. Ideal for automotive interiors, footwear, and technical upholstery, our automated digital cutting system utilizes high-speed mechanical knives and intelligent nesting software to process rolls or large sheets continuously, delivering immaculate, burn-free edge quality while eliminating manual handling bottlenecks.

Frequently Asked Questions (FAQ)

Q: How many workers can the JWEI automated digital cutting system actually save in a real factory setup?

A: In most traditional cutting rooms processing automotive leather or technical textiles, you need at least three people: one to load rolls, one to operate the static cutter, and another to manually clear and sort the pieces. Our automated digital cutting system turns this into a comfortable one-man job, and in some roll-fed fabric setups, it runs completely unmanned. Because the loading, knife cutting, and conveyor unloading are perfectly synchronized, your operator only needs to sort the finished parts at the collection table. Most factories see a full return on labor investment within less than a year.

Q: With flexible fabrics and synthetic leathers, doesn't the material stretch or slip during conveyor feeding, ruining the precision?

Q: Why choose this mechanical cutting system instead of a high-speed industrial laser cutter for volume production?
