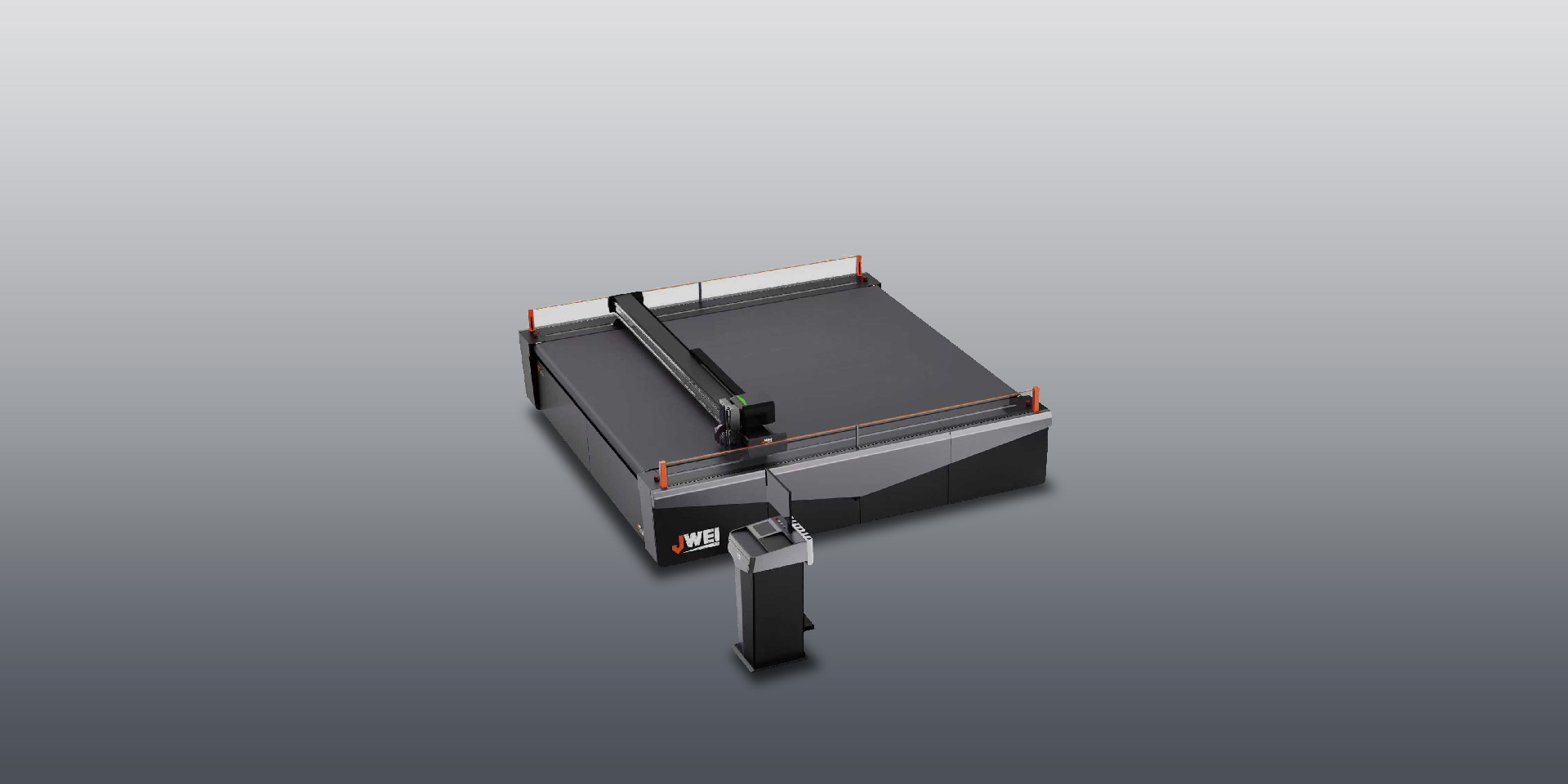

SL3232
3.2m Large Format ， 3m/s High-Speed
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions
The SL3232 digital cutter is the brand-new flagship model launched by JWEI in 2025, a large-format digital cutter that achieves both ultra-high speed and wide-format precision. Equipped with a globally leading control system and software, it’s designed to meet the production demands of a wide range of industries. Against the backdrop of technological innovation, the SL series digital cutter offers more competitive cutting quality, enabling customers to handle more complex, more diverse, and higher-precision tasks — all with improved speed and efficiency.
Magnetic Levitation Drive + Linear Motors
Even with its ultra-large cutting format, the SL3232 achieves an impressive running speed of 3 m/s, thanks to its magnetic levitation and linear motor drive system—ensuring optimal cutting speed without compromising precision.
Advanced motion control algorithms
Powered by the cutting-edge M7 control board, the SL3232 utilizes an industry-leading motion control algorithm that enables flawless cutting of 1mm micro-circles—delivering unmatched precision for the most demanding applications.
Large-Format Flexible Film Precision Identification
Supports integration with an AI-powered vision system, enabling overhead projector automatic edge detection. Even without printed cut lines, the SL3232 can achieve highly accurate cutting by intelligently identifying material contours.
Four Layers of Safety Protection
The SL3232 is equipped with four layers of safety mechanisms to ensure comprehensive operator protection:
- Proximity slow-down protection
- Lift-type safety guard
- Infrared anti-collision sensors
- Emergency stop system
These features work together to deliver a safe and secure cutting environment under all operating conditions.

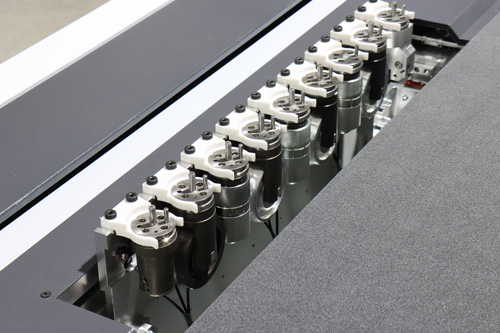

Automatic Tool Change
Automatic Tool Change (ATC) and Automatic Bit Change (ABC)
Eliminates the need for manual tool swaps by automatically changing between different cutting tools, significantly reducing downtime and improving workflow efficiency.
Laser Tool Alignment
Utilizes laser-based tool alignment to eliminate potential errors associated with traditional physical calibration methods—ensuring greater precision and reliability.
Application Scenarios
Ideally suited for high-speed cutting of large-format roll materials such as flexible films, car wraps, and lightbox graphics. The SL3232 is especially well-suited for businesses involved in outdoor advertising and the production of wide-format printed materials.
Aluminum Composite Panel
KT board

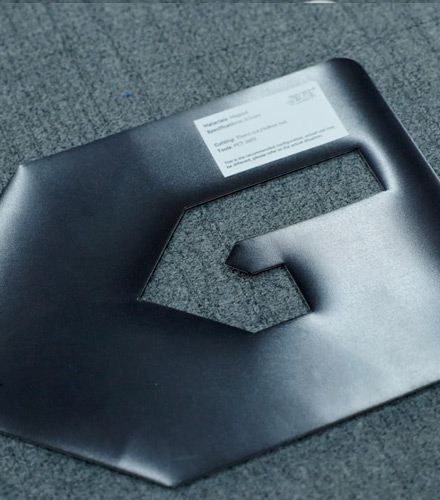

Magnetic

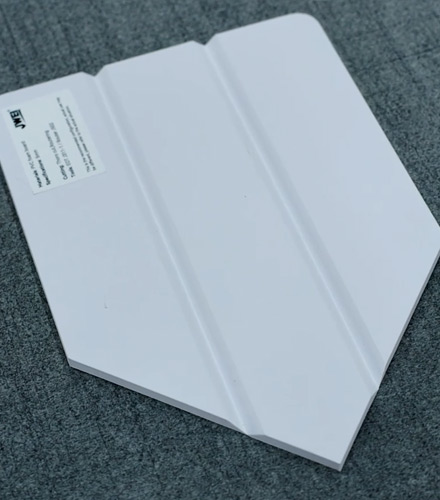

PVC foam board
Recommended Configuration
Rotary knife cutting tool
Multiple blades options available, suitable for cutting single-layer and limited multi-layer fabrics, including various woven and knitted textiles,as well as dry carbon fiber fabrics. In the advertising industry, it enables precise cutting of materials such as flag fabric, art canvas, and warp-knitted fabrics.

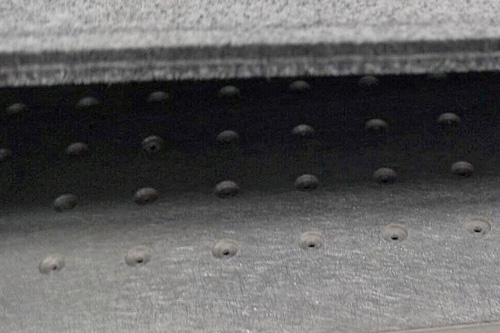

Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force
Electric oscillating Tool
Equipped with a built-in high-frequency Maxon motor reaching speeds of up to 18,000 RPM and specially designed tungsten steel hardened blades, it effortlessly handles cutting of tougher and thicker materials—such as corrugated board, honeycomb board, KT board, and PVC foam board—with high speed and clean, smooth edges.

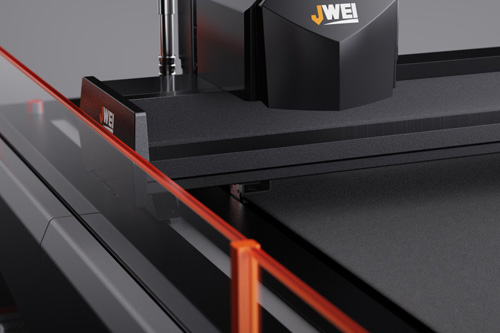

Quadruple Safety Protection
Proximity Slow-Down + Lift-Type Guard + Infrared Collision Prevention + Emergency Stop. These four responsive safety mechanisms work together to ensure both operator safety and machine reliability. With rapid response times and intelligent protection, the SL3232 provides full-coverage safety to safeguard personnel and maintain stable operation.

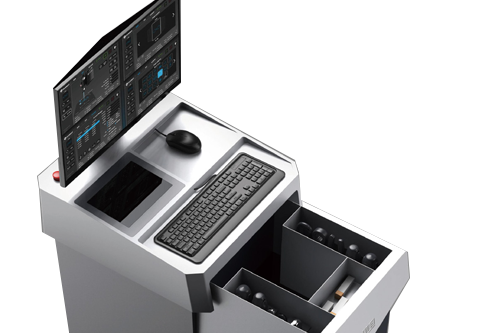

Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools
V-CUT Tool For Multi-angle
Part description
Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Explosion-proof Pressure Wheel
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SL3232 |

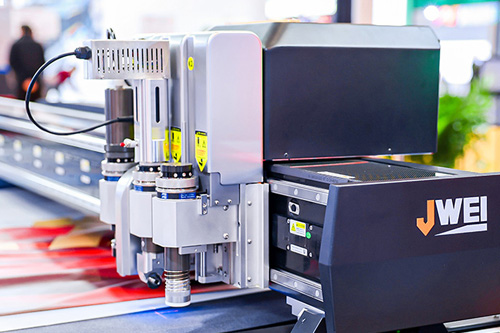

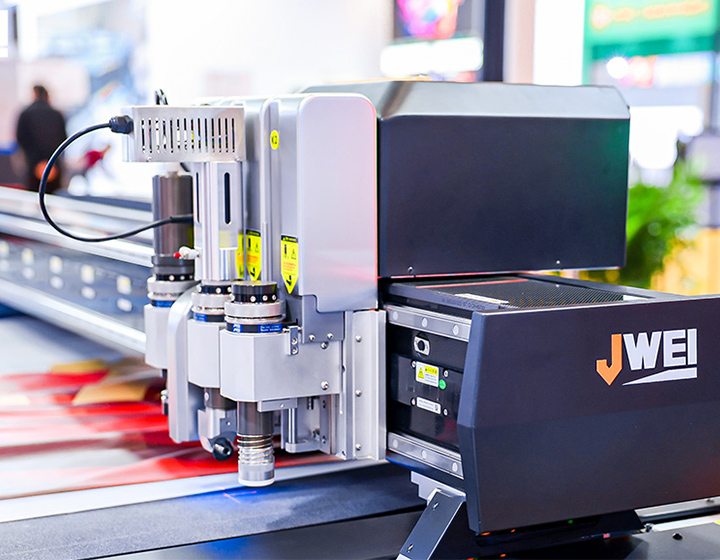

| Multi-functional Tool Head | Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing,drawing, router and other functions in one, optional ATC module. |
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools etc. |
| Max. Operating speed | 3000mm/s |
| Max. Cutting Thickness | 50mm * |
| Repeat Precision | <0.05mm |
| Cutting Materials | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc |
| Material Fixation Mode | Vacuum absorption |
| Software resolution | 0.025、0.01、0.1 optional |
| Transmission Mode | Ethernet port |
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screw, linear motor drive |
| Instruction system | HP-GL compatible format |
| Automatic knife setting | Non-contact tool setting mode for drag knife, rotary tool, electric oscillating tool, creasing wheel tool, v-cut tool, etc. |
| Automatic tool setting accuracy | 0.05mm |
| Rated Power | 23kW |
| Rated Voltage | 380V±10% |
| Machine Weight | 4000kG |
| Effective Cutting Size (WxL) | 3250mm×3200mm |
| Machine Size (WxLxH) | 4550mm×4250mm×1400mm |
Note: * will be determined based on the specific materials in the actual application scenario.

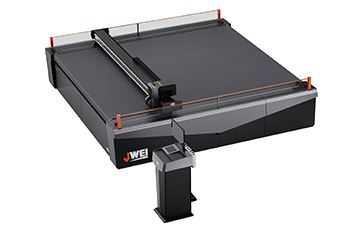

JWEI SL3232 Wide-Format Digital Die Cut Machine for Industrial Use
JWEI SL3232, a high-performance digital die cut machine designed for large-format industrial processing. Featuring a robust 3.2m*3.2m vacuum bed, this advanced CNC system precision-cuts rigid signage boards and flexible multi-layer packaging substrates directly from CAD designs. Upgrading to JWEI's digital die-less technology allows your facility to achieve rapid job changeovers, flawless edge quality, and maximum material savings for a highly efficient, 24/7 continuous workflow.
Frequently Asked Questions (FAQ)
Q: What are the main advantages of using the JWEI SL3232 digital die cut machine over traditional die cutters?
A: The primary advantage of the JWEI SL3232 digital die cut machine is its die-less operation. Instead of spending time and money manufacturing physical wood-and-steel dies, the SL3232 uses precision CNC blades driven by digital CAD files. This eliminates tooling costs, reduces setup times to zero, and allows you to switch between custom shapes instantly with near-zero material waste.
Q: What material sizes and types can this digital die cut machine handle?
Q: How does the SL3232 ensure high accuracy during large-format digital die cutting?
